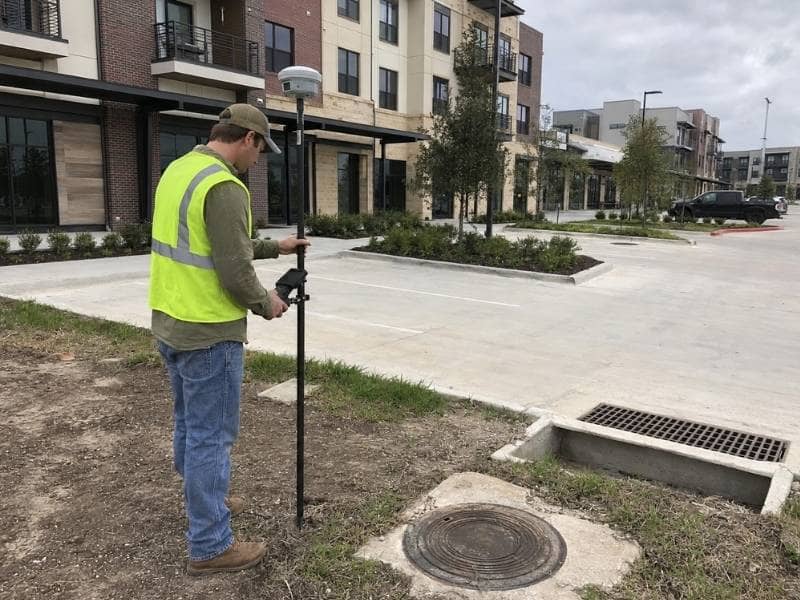

When you have to fit a lot onto a little land, every foot counts. A topographic survey is what makes tight, high density development possible, because it shows you the exact shape of the ground before anyone designs a building. Cram parking, buildings, walkways, and utilities onto a small site, and there’s no room for guessing. You need to know where the land rises, falls, and drains. That detailed map lets designers use limited ground wisely instead of discovering problems mid-project.

Dense sites in College Station leave little margin for error. So the survey isn’t a formality here. It’s the base the whole layout stands on.

High Density Design Depends on Using Limited Ground Efficiently

On a packed site, detailed existing-condition information becomes worth its weight in gold. When buildings, parking, circulation, and utilities all have to share a small footprint, the designer needs to know exactly what’s there. A rough sketch of the land won’t cut it. Small features you’d ignore on a big open tract can block or reshape a plan on a dense one.

That’s why the survey detail scales up as the site tightens. Every square foot has a job, so the designer must place each element with care. Accurate ground data lets them test whether everything actually fits before committing. Guessing wastes space you don’t have and can force expensive redesigns.

Efficient use of land starts with knowing the land. On high density projects, that knowledge is the difference between a plan that works and one that unravels.

Which Existing Features Need to Be Located Before Design Starts?

A dense site needs many existing features mapped before design begins, and here’s the core list a topographic survey should capture:

• Existing structures and their exact positions on the site
• Pavement, curbs, and walkways already in place
• Drainage features like inlets, ditches, and swales
• Visible utilities, such as meters, poles, manholes, and valves
• Notable terrain changes, from slopes to retaining walls
• Trees worth keeping, when they affect the layout

Each of these can steer a design decision. A drainage inlet dictates how water leaves the site. A cluster of utilities near one corner might block where a building can go. So the survey records them all, giving the design team a full inventory of what they’re working around.

Locating these features first saves painful surprises. It’s far cheaper to design around a known obstacle than to hit it during construction.

Vertical Information Matters When Several Uses Share the Same Site

Heights matter as much as horizontal position when many users share one site. Elevations control how a driveway meets the street, how an accessible route stays within slope limits, and where finished floors sit. On a dense project, these vertical connections get complicated fast, since parking, entrances, and buildings all tie together.

So the survey captures spot elevations and contours across the whole site. That data lets the designer plan smooth transitions between different areas. A parking lot has to drain toward the right spot and still connect gently to a building entrance. Get the vertical planning wrong, and you end up with a ramp that’s too steep or a doorway that floods. Good elevation data keeps all those pieces working together.

How Detailed Should Topographic Data Be for a Dense Development?

The right level of detail comes from the design team’s needs, not a one-size-fits-all rule. A dense development usually calls for tighter detail than a large rural site, but the exact requirement depends on what the engineer and architect are planning. So the smart move is to ask them before fieldwork starts.

Talk through the design goals with your surveyor. A project with underground parking and multiple buildings needs more precise elevation data than a simple pad site. When the survey scope matches the design’s real demands, you get exactly the detail you need. Ordering too little means a return trip. Ordering blindly wastes money. Matching detail to purpose is the efficient path.

A Strong Base Map Helps Different Design Disciplines Work From the Same Conditions

A reliable topographic survey becomes the shared reference every design discipline uses. On a dense development, the civil engineer, architect, landscape designer, and others all need to work from the same picture of the site. When they each start from the same accurate base map, their plans line up instead of clashing.

That shared foundation prevents costly coordination errors. If the architect and the civil engineer worked from different ground data, their designs might not connect at the seams. A single base map keeps everyone honest. So the survey does more than measure dirt. It becomes the common language the whole design team speaks, which matters most when the site leaves no room for mistakes.

Frequently Asked Questions

Should existing utilities be included in a high density topographic survey?

Yes, visible utility features should be located, since they strongly affect where buildings and parking can go. For buried lines, coordinate a separate utility location, because a standard topo maps what’s observable on the surface.

Can a topo survey cover neighboring features that affect site design?

Yes, within an agreed scope. Designers often need limited data just past the property line, like adjacent grades or connection points. Set that extended scope and confirm access before the crew heads out.

What information should the project engineer give the surveyor before fieldwork?

The engineer should share the design goals, required detail level, preferred datum, and any specific features to capture. Clear instructions up front let the surveyor deliver data that fits the plan without a return trip.

Can topographic data be supplied in CAD for design work?

Yes. Surveyors commonly deliver topographic data in CAD formats the design team can use directly. Confirm the file format and layering standards early, so the data drops cleanly into the engineer’s workflow.

When should a site be resurveyed if conditions change before construction?

Resurvey when meaningful changes occur, such as grading, demolition, or new nearby construction. Building from outdated conditions risks errors, so a fresh check protects the design when the ground no longer matches the original map.
